Batson

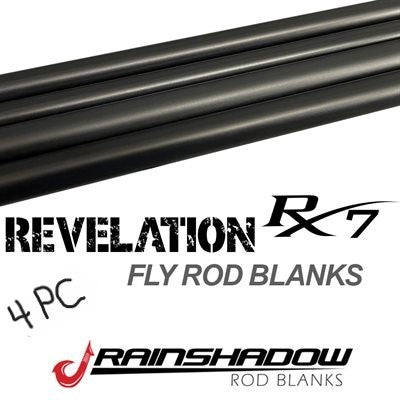

Rainshadow Revelation RX7 Graphite Fly Rod Blank (4 PC)

Rainshadow Revelation RX7 Graphite Fly Rod Blank (4 PC)

Regular price $93.30 USD
Regular price $133.25 USD Sale price $93.30 USD
Sale Sold out
Fly Rod Length
WT
Quantity

The Batson Design team put the fishing industry on notice when their REVELATION casting and spinning rod blanks were released. These feature-rich performance blanks were the first in the industry to be offered at such a competitive prie-point. Building on the success of their casting and spinning blanks, they took the same ground-breaking technology and applied it to our REVELATION fly rod blanks. Each model is painstakingly field-tested to ensure they deliver the casting performance anglers expect from Rainshadow. They are truly a Revelation!

REVF662-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 6'6"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 2wt.
  • Weight (oz.) : 0.9oz.
  • Butt Diameter : 0.286
  • Tip Top Size : 4.0
  • Rod Blank Application : Small Water Trout / Panfish



REVF663-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 6'6"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 3wt.
  • Weight (oz.) : 1.0oz.
  • Butt Diameter : 0.289
  • Tip Top Size : 4.0
  • Rod Blank Application : Small Water Trout / Panfish



REVF703-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 7'
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 3wt.
  • Weight (oz.) : 1.0oz.
  • Butt Diameter : 0.309
  • Tip Top Size : 4.0
  • Rod Blank Application : Small Water Trout / Panfish



REVF704-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 7'
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 4wt.
  • Weight (oz.) : 1.1oz.
  • Butt Diameter : 0.311
  • Tip Top Size : 4.0
  • Rod Blank Application : Small Water Trout / Panfish



REVF793-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 7'9"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 3wt.
  • Weight (oz.) : 1.1oz.
  • Butt Diameter : 0.32
  • Tip Top Size : 4.0
  • Rod Blank Application : Small Water Trout / Panfish



REVF794-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 7'9"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 4wt.
  • Weight (oz.) : 1.3oz.
  • Butt Diameter : 0.335
  • Tip Top Size : 4.5
  • Rod Blank Application : Small Water Trout / Panfish



REVF863-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 8'6"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 3wt.
  • Weight (oz.) : 1.3oz.
  • Butt Diameter : 0.314
  • 10" Diameter : 0.297in / 7.5mm
  • 20" Diameter : 0.272in / 6.9mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Stream Trout / Panfish



REVF864-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 8'6"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 4wt.
  • Weight (oz.) : 1.4oz.
  • Butt Diameter : 0.34
  • 10" Diameter : 0.308in / 7.8mm
  • 20" Diameter : 0.28in / 7.1mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Stream Trout / Panfish



REVF865-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 8'6"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 5wt.
  • Weight (oz.) : 1.6oz.
  • Butt Diameter : 0.349
  • 10" Diameter : 0.321in / 8.2mm
  • 20" Diameter : 0.295in / 7.5mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Stream Trout / Panfish



REVF903-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 3wt.
  • Weight (oz.) : 1.4oz.
  • Butt Diameter : 0.316
  • 10" Diameter : 0.266in / 6.8mm
  • 20" Diameter : 0.217in / 5.5mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Trout
  • Rod Blank Application : Panfish



REVF904-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 4wt.
  • Weight (oz.) : 1.6oz.
  • Butt Diameter : 0.327
  • 10" Diameter : 0.311in / 7.9mm
  • 20" Diameter : 0.282in / 7.2mm
  • Tip Top Size : 4.5
  • Rod Blank Application : Trout
  • Rod Blank Application : Panfish



REVF905-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 5wt.
  • Weight (oz.) : 1.7oz.
  • Butt Diameter : 0.384
  • 10" Diameter : 0.355in / 9mm
  • 20" Diameter : 0.318in / 8.1mm
  • Tip Top Size : 4.5
  • Rod Blank Application : Trout
  • Rod Blank Application : Panfish



REVF906-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 6wt.
  • Weight (oz.) : 1.8oz.
  • Butt Diameter : 0.382
  • 10" Diameter : 0.352in / 8.9mm
  • 20" Diameter : 0.318in / 8.1mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Large River Trout
  • Rod Blank Application : Trout
  • Rod Blank Application : Panfish
  • Rod Blank Application : Small Bass



REVF907-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 7wt.
  • Weight (oz.) : 2.2oz.
  • Butt Diameter : 0.367
  • 10" Diameter : 0.341in / 8.7mm
  • 20" Diameter : 0.309in / 7.8mm
  • Tip Top Size : 4.5
  • Rod Blank Application : Smallmouth Bass
  • Rod Blank Application : Summer Run Steelhead
  • Rod Blank Application : Bonefish



REVF908-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 8wt.
  • Weight (oz.) : 2.3oz.
  • Butt Diameter : 0.379
  • 10" Diameter : 0.355in / 9mm
  • 20" Diameter : 0.331in / 8.4mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Largemouth Bass
  • Rod Blank Application : Steelhead
  • Rod Blank Application : Bonefish
  • Rod Blank Application : Redfish



REVF909-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 9wt.
  • Weight (oz.) : 2.4oz.
  • Butt Diameter : 0.384
  • 10" Diameter : 0.36in / 9.1mm
  • 20" Diameter : 0.335in / 8.5mm
  • Tip Top Size : 4.5
  • Rod Blank Application : Largemough Bass Hvy Cover
  • Rod Blank Application : Salmon
  • Rod Blank Application : Northern Pike
  • Rod Blank Application : Permit
  • Rod Blank Application : Bull Redfish
  • Rod Blank Application : SW Striped Bass
  • Rod Blank Application : Cobia



REVF9010-4SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 9'0"
  • Number of Pieces : 4
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 10wt.
  • Weight (oz.) : 2.6oz.
  • Butt Diameter : 0.409
  • 10" Diameter : 0.382in / 9.7mm
  • 20" Diameter : 0.35in / 8.9mm
  • Tip Top Size : 4.5
  • Rod Blank Application : King Salmon
  • Rod Blank Application : Northern Pike
  • Rod Blank Application : Permit
  • Rod Blank Application : Small Tarpon
  • Rod Blank Application : Muskie



REVF1005-2SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 10'
  • Number of Pieces : 2
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 5wt.
  • Weight (oz.) : 2.4oz.
  • Butt Diameter : 0.348
  • 10" Diameter : 0.336in / 8.5mm
  • 20" Diameter : 0.319in / 8.1mm
  • 30" Diameter : 0.306in / 7.8mm
  • Tip Top Size : 4.0
  • Rod Blank Application : Float Tube Trout



REVF1006-2SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 10'
  • Number of Pieces : 2
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 6wt.
  • Weight (oz.) : 2.6oz.
  • Butt Diameter : 0.36
  • 10" Diameter : 0.346in / 8.8mm
  • 20" Diameter : 0.326in / 8.3mm
  • 30" Diameter : 0.307in / 7.8mm
  • Tip Top Size : 4.5
  • Rod Blank Application : Float Tube Trout



REVF1007-2SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 10'
  • Number of Pieces : 2
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 7wt.
  • Weight (oz.) : 2.7oz.
  • Butt Diameter : 0.378
  • 10" Diameter : 0.363in / 9.2mm
  • 20" Diameter : 0.342in / 8.7mm
  • 30" Diameter : 0.323in / 8.2mm
  • Tip Top Size : 5.0
  • Rod Blank Application : Float Tube Trout
  • Rod Blank Application : Summer Run Steelhead



REVF1008-2SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 10'
  • Number of Pieces : 2
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 8wt.
  • Weight (oz.) : 2.4oz.
  • Butt Diameter : 0.422
  • 10" Diameter : 0.401in / 10.2mm
  • 20" Diameter : 0.375in / 9.5mm
  • 30" Diameter : 0.353in / 9mm
  • Tip Top Size : 5.0
  • Rod Blank Application : Steelhead



REVF1009-2SB
  • Series : Revelation RX7 Fly
  • Item Length (in) : 10'
  • Number of Pieces : 2
  • Rod Blank Color : Satin Black
  • Action : Fast
  • Material : RX7 Graphite
  • Line Rating (lbs.) : 9wt.
  • Weight (oz.) : 2.8oz.
  • Butt Diameter : 0.43
  • 10" Diameter : 0.412in / 10.5mm
  • 20" Diameter : 0.385in / 9.8mm
  • 30" Diameter : 0.36in / 9.1mm
  • Tip Top Size : 6.0
  • Rod Blank Application : Salmon / Steelhead





View full details
